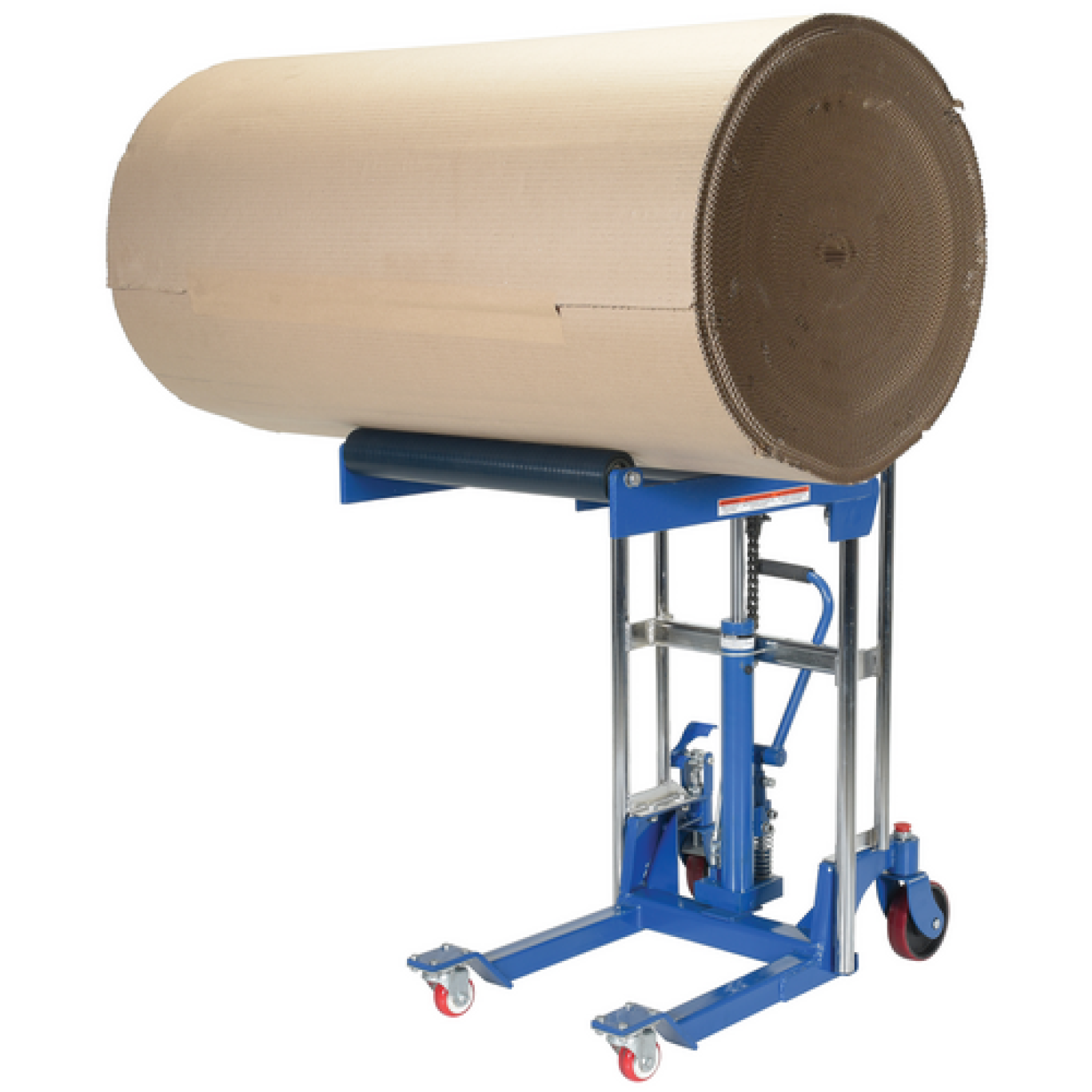

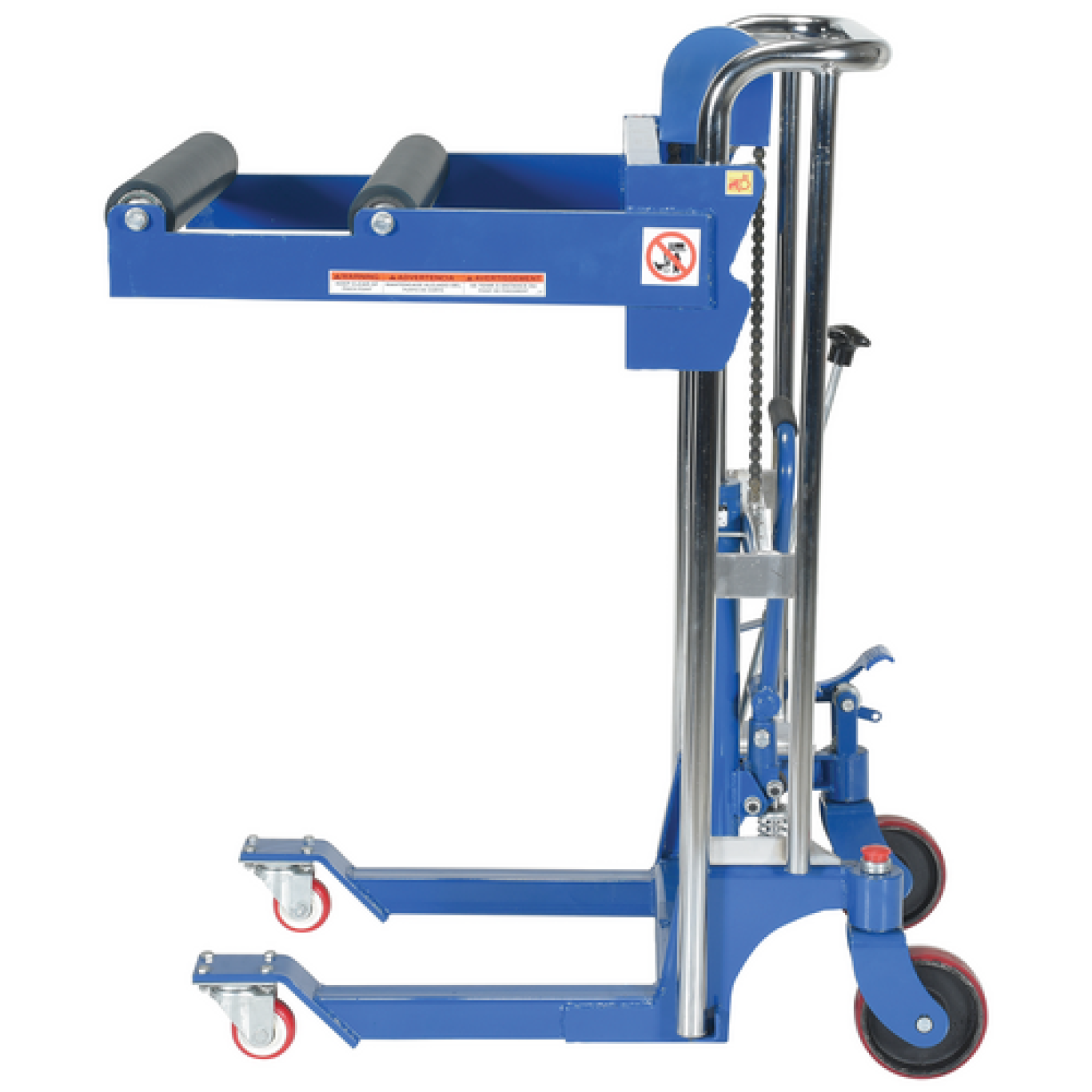

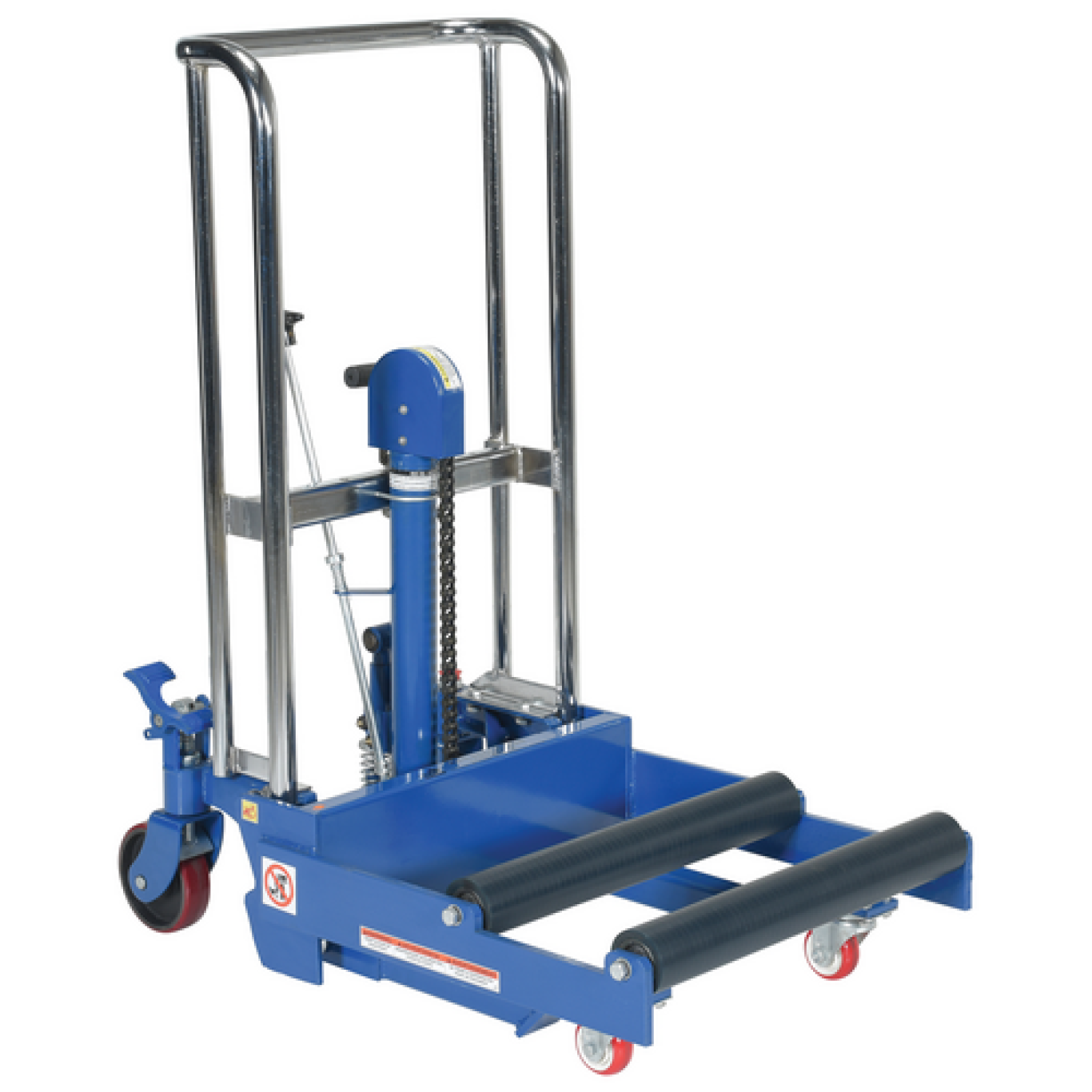

This hydraulic foot pedal roll lifter is easy to pump and roll around.
Ships via freight. Contact us for a quote.
| Capacities | |
| Maximum Roll Diameter | 21.000" (21") [533.40mm] |
| Minimum Platform Height | 7.480" (7-31/64") [190.00mm] |
| Maximum Platform Height | 38.189" (38-3/16") [970.00mm] |
| Maximum Load | 800# [363kg] |
| Safety | |
| Raising & Lowering | Foot pump to lift. Fine adjustment release valve for lowering |
| Dimensions | |
| Overall Size (L x W x H) | 24.000" (24") [609.60mm] x 38.000" (38") [965.20mm] x 46.000" (46") [1168.40mm] |
| Front Wheel Diameter | 2.953" (2-61/64") [75.00mm] |
| Rear Wheel Diameter | 5.906" (5-29/32") [150.00mm] |
| Net Weight | 200# [91kg] |
| Features | |
| Caster Type | All swiveling, 2 lockable |
| Support | |
| Phone and email Support | |
| Warranty | |
| Condition | |
| Product Condition | |
