Load rolls of paper, foil and film on your spindle with little effort safely and efficiently.

Ships via freight. Contact us for a quote.

Capacities
Maximum Roll Width	16.000" (16") [406.40mm]
Maximum Load	330# [150kg]
Safety
Raising & Lowering	Retracting Cord with Remote Control

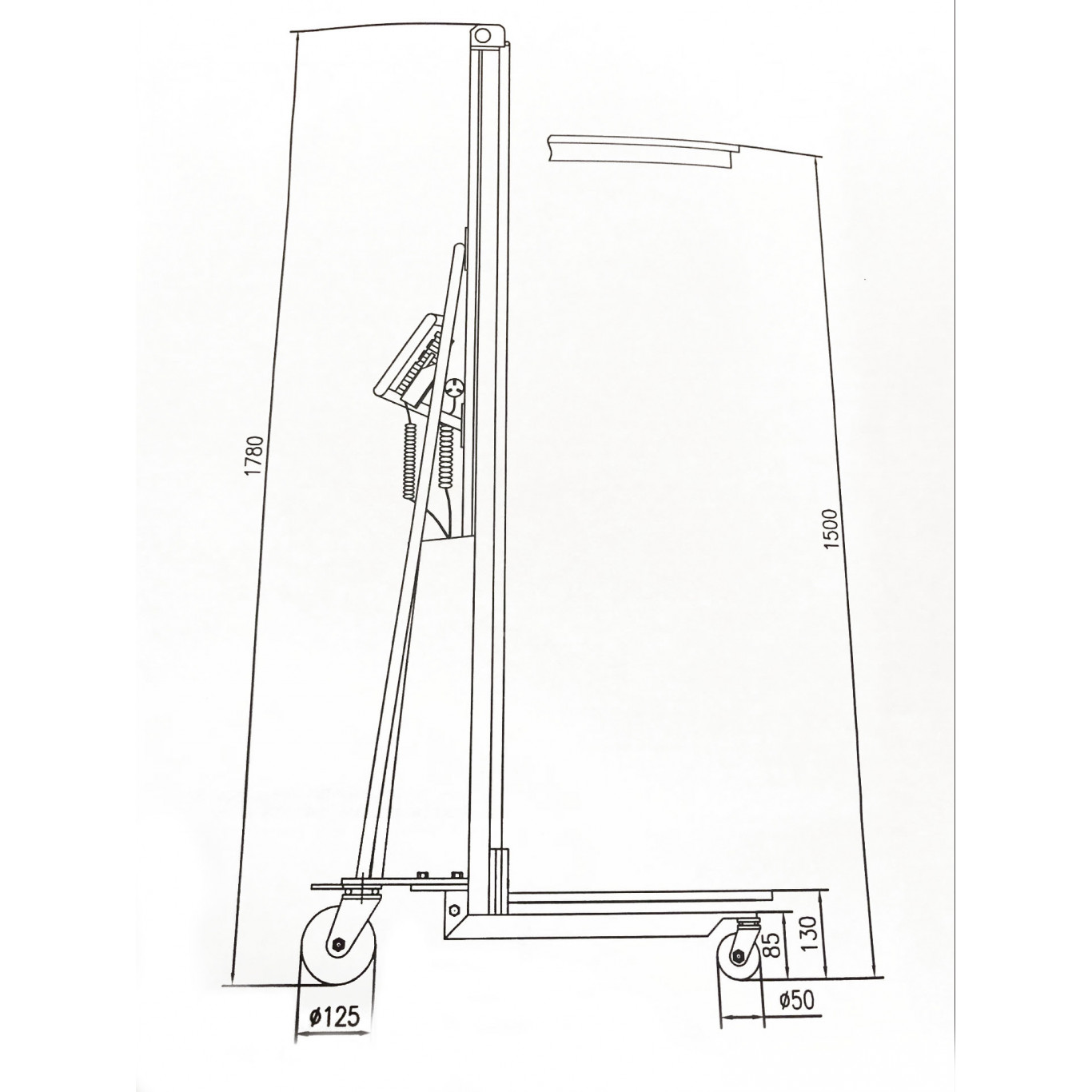

Dimensions
Overall Size (L x W x H)	35.039" (35-3/64") [890.00mm] x 23.622" (23-5/8") [600.00mm] x 68.898" (68-57/64") [1750.00mm]
Minimum Spindle Height (Centerline)	7.000" (7") [177.80mm]
Maximum Spindle Height (Centerline)	60.000" (60") [1524.00mm]
Spindle Diameter	1.890" (1-57/64") [48.00mm]
Spindle Length	23.622" (23-5/8") [600.00mm]
Front Wheel Diameter	2.953" (2-61/64") [75.00mm]
Rear Wheel Diameter	4.921" (4-59/64") [125.00mm]
Net Weight	145# [66kg]
Gross Weight	286# [130kg]
Shipping Dimensions (L x W x H)	Wooden Crate 30.000" (30") [762.00mm] x 36.000" (36") [914.40mm] x 77.000" (77") [1955.80mm]
Power
Battery Type	Rechargeable Maintenance-Free Continuous Use Sealed Dry-Cell AGM Lead Acid
Charging Current	6.7A
Input Phase	Single
Battery Capacity	45Ah
Battery Voltage	24VDC
Input Frequency	60Hz
Input Voltage	120VAC
Support
Phone and email Support	Free - Ask an engineer for help
Warranty	1 Year
Condition
Product Condition	New
